The Vertebrae System: 3D Flexible Modular Wall Washer | Innovative Facade Lighting

Discover the Vertebrae System by NOOR ARCH. A revolutionary 3D flexible LED wall washer that bends and rotates like a spine. Perfect for curved facades, trees, and creative landscapes. DMX512 compatible for infinite lighting possibilities.

Contact Us

NOOR ARCH | The Vertebrae System: Light that Moves with Your Architecture.

"3D Flexibility. Infinite Possibilities."

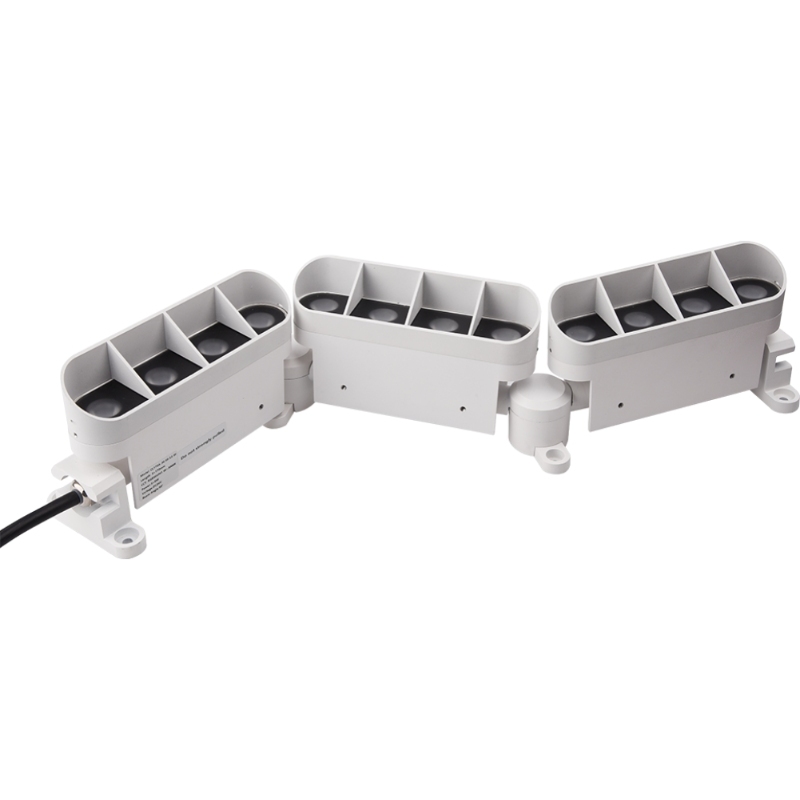

Break free from the constraints of rigid lighting. The Vertebrae System (RADER & MINI Series)is an avant-garde modular solution designed to mimic the organic movement of a spine or the rugged precision of a tank track. It doesn't just light a surface; it crawls, climbs, and curves along with your design.

Why the Vertebrae System is a Game-Changer:

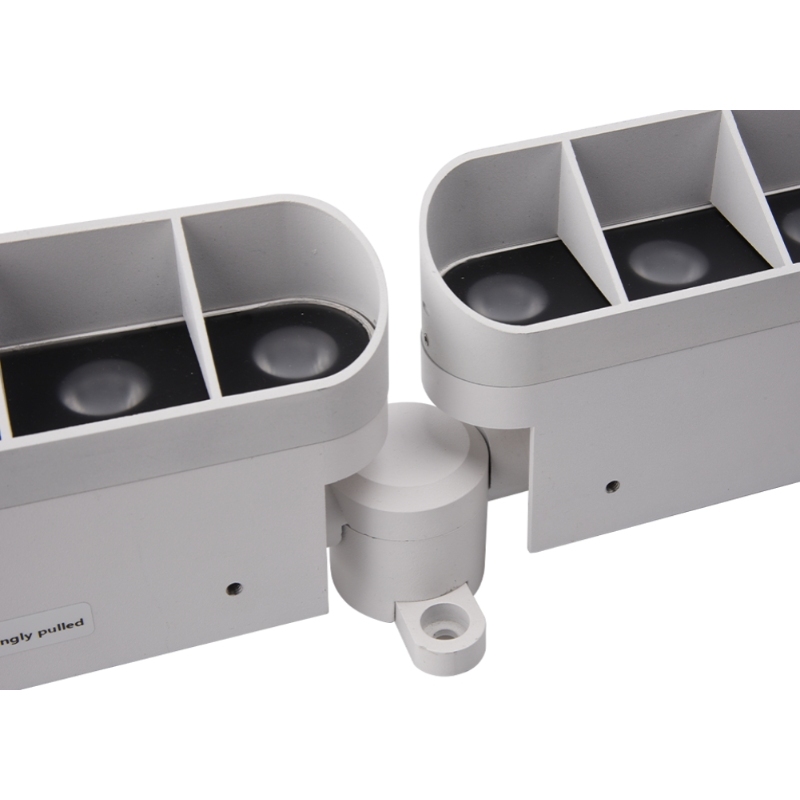

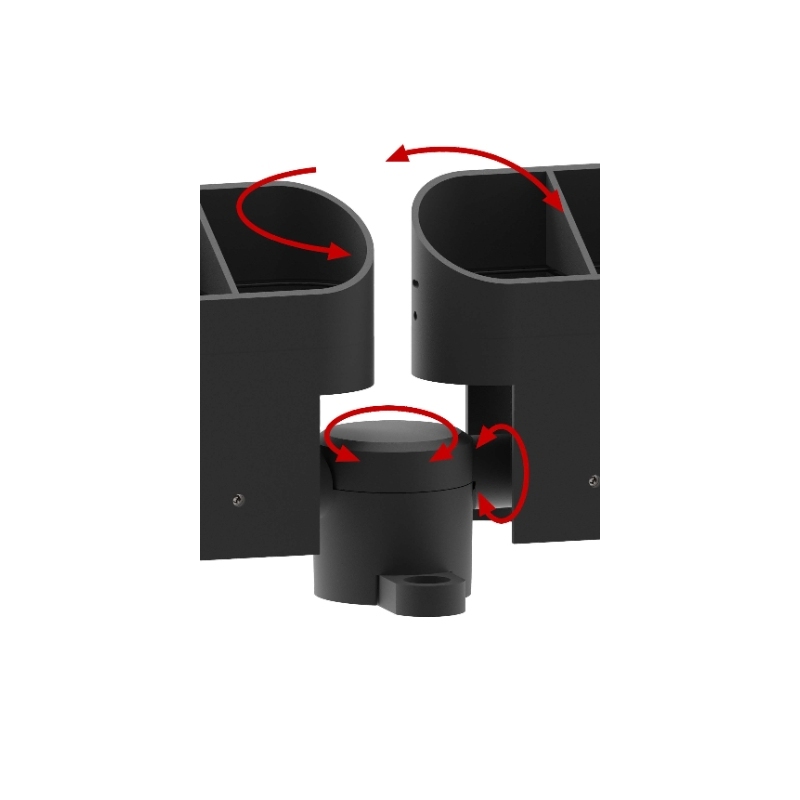

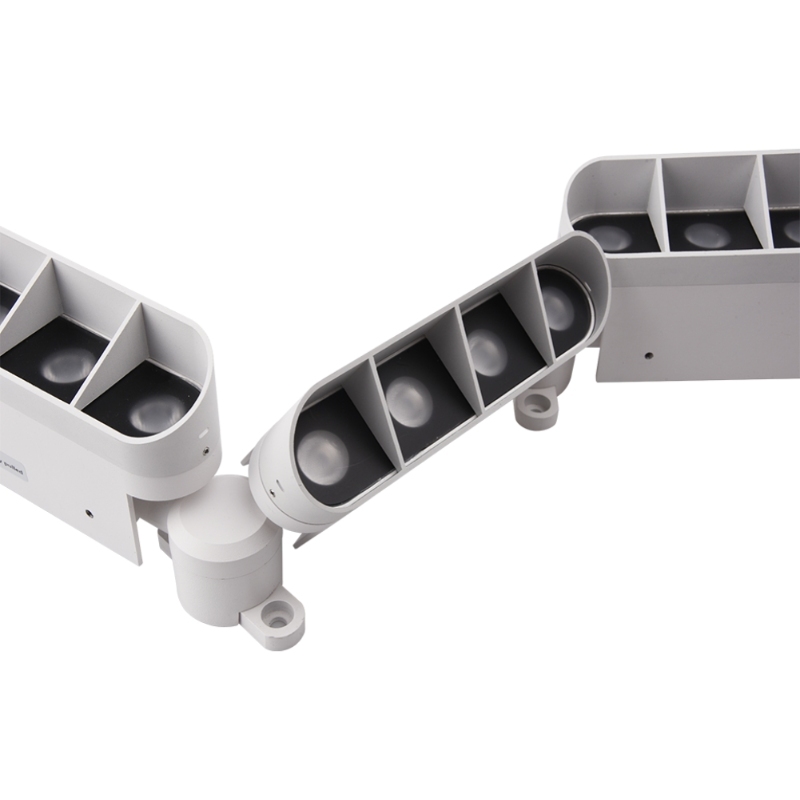

  • Unrivaled 3D Flexibility: Unlike standard flexible strips, the Vertebrae System features mechanical joints allowing for 35° Vertical Rotationand 90° Horizontal Rotation. It can navigate complex curves, spiral around columns, or follow the irregular contours of natural stone.

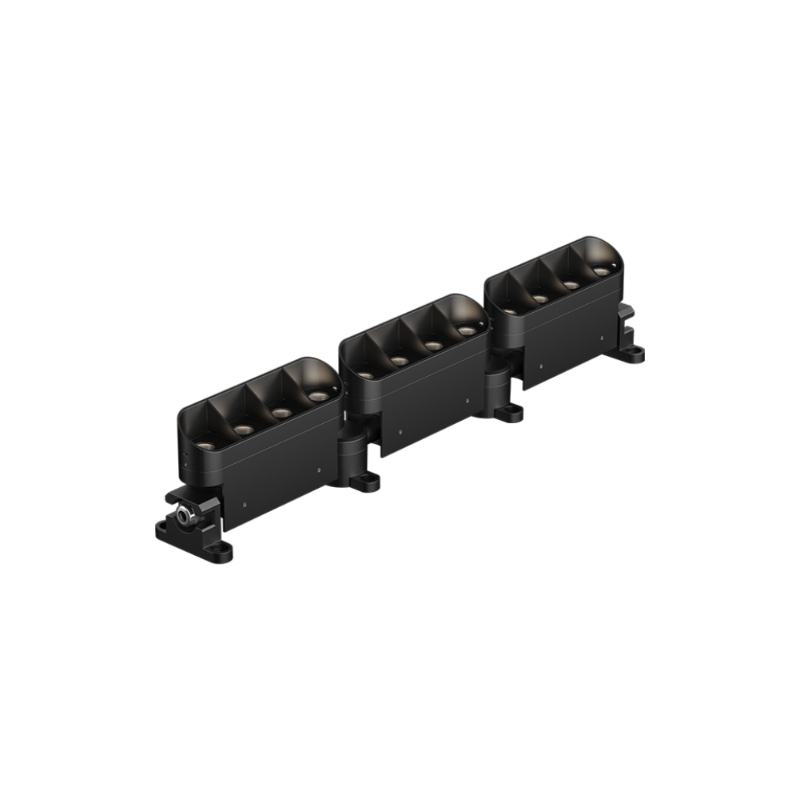

  • Industrial Aesthetics: The RADER Series(Vertebrae) offers a bold, tank-track-inspired look that architects love to showcase. For more subtle applications, the MINI Series(Flux Line) provides a slim profile for delicate accents.
  • Professional Control (DMX512/RDM): Built for large-scale architectural projects, the system supports DMX512 and RDM protocols, enabling dynamic RGBW color-changing effects that can be synchronized with music or programmed scenes.
  • Precision Optics: Choose between Asymmetric and Symmetric Hoodsto control light spill. Whether you need a deep wall wash or a soft glow, the Vertebrae System delivers with visual comfort.

Technical Specs (Engineer’s Choice):

  • Modularity:24W per module (RADER)

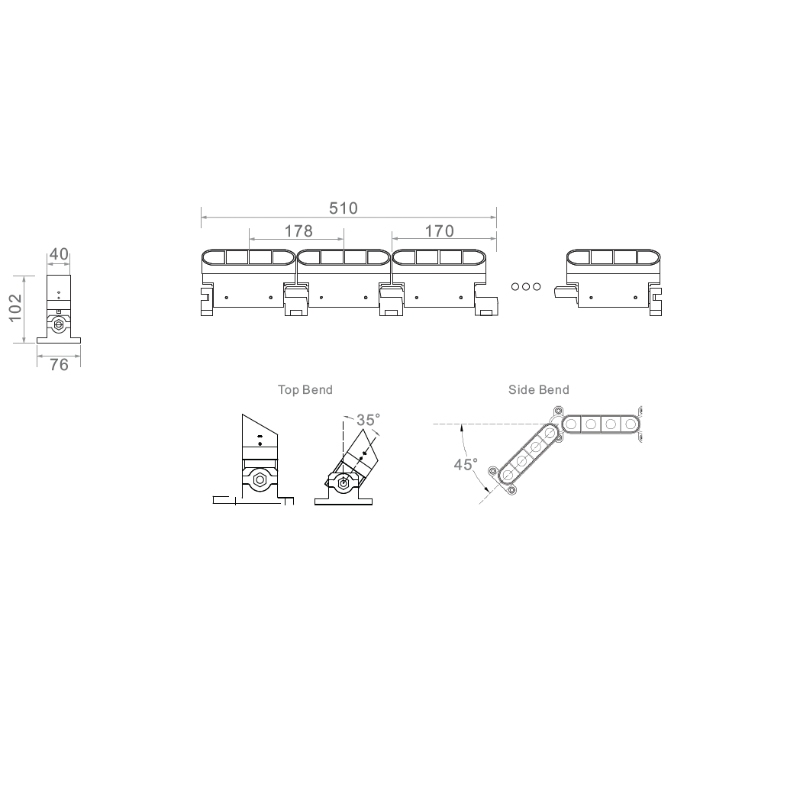

  • Flexibility: Top Bend and Side Bend capability.
  • Durability: IP66 Waterproof, IK06 Impact Resistance.
  • Color Range:2700K-6500K, RGB, RGBW.
  • Finish: Architectural Grey, Sanded Black, Silk White.
